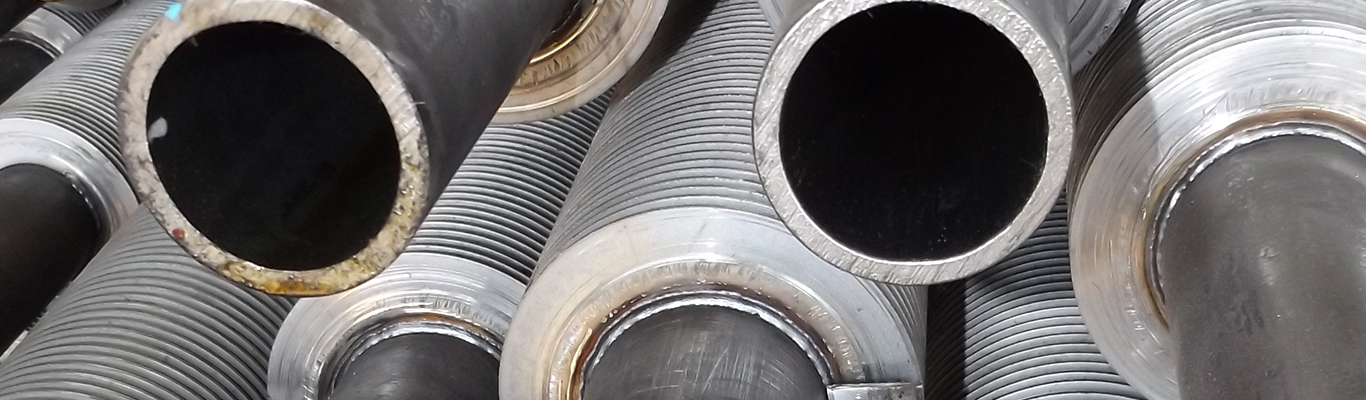

High Frequency Welded Fin Tube (Continuously Welded Spiral Fin Tube) :-

As the name suggests , in this type of Fin Tube the finning is a Spirally Wound .

The fins are manufactured by Spirally Winding the fin around the Base Tube and Pipe. During the winding the fin is Coninouslly Welded by High Frequency welding giving the Most reobust bond between the the Fin and the Tube.

This type of Fin Tube is used specifically where the application involves a lot of Mechanical Stresses like continuous vibrations etc.

The welding bond between the Tube and The Fin also ensures that almost perfect heat Transfer Efficiency is achieved. Also it can give the highest operating temperature ranges.

These Fin Tubes find application in RADIATORS , AIR PREHEATERS , WASTE HEAT RECOVERY SYSTEMS, BOILER FIN TUBES etc and are preferred in Industries like Power Plants , Chemical Industries , Steel Plants , Chiller Plants etc,

High Frequency Welded Fin Tube (Continuously Welded Spiral Fin Tube):-

  1. Manufacturing Process :- Continuously Welded Spiral Fin Tube

  2. Fin To Tube Bond :- Excellent

  3. Heat Transfer Efficiency :- Excellent

  4. Mechanical Resistance: – Excellent (Hence can be frequently cleaned with high pressure jets unlike other fin tubes. Thereby reducing down time and increasing overall life)

  5. Corrosion Protection: – Moderate

  6. Temperature Range :- Upto Maximum 500 Deg C

Manufacturing Range (Welded Fin Tube / Solid Fin Tube ):-

Sr.No

Particulars

Range

1

Base Tube Material

Stainless Steel, Carbon Steel , Alloy Steel, Titanium , Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit )

2

Base Tube Outside Diameter

16.00 mm to 225.00 mm ( ½” NB Pipe to 8” NB Pipe)

3

Base Tube Thickness

2.50 mm And Above

4

Base Tube Length

500 mm Min To 12000 mm

5

Fin Material

Carbon Steel , Alloy Steel , Stainless Steel ,

6

Fin Thickness

0.80 mm To 2.50 mm

7

Fin Density

79 FPM ( 2 FPI ) to 276 FPM ( 7 FPI )

8

Fin Height

9.8 mm to 25.00 mm

9

Bare Ends

As per Client Requirement

10

Manufacturing Capacity

3,00,000 Metres Per Annum

We can supply material on urgent delivery basis because of large stock and relations with raw material suppliers. We use only Prime Quality base tube and Aluminium Material.

Welded Fin Tube

Products Applications

  • Automobile Industries
  • Heat Exchanger
  • Boiler & Pressure Vessel
  • Petroleum Industries
  • Pharmaceutical Industries
  • Condenser
  • Oil & Gas Refineries
  • Thermal & Nuclear Power Plants
  • Chemical Industries
  • Defense
  • Hydraulic & Pneumatic Systems
  • Dairies
  • Fertilizers Industries
  • Solvent Plant
  • Sugar Industries
  • Railways
  • Textile Machinery
  • Instrumentation
